Xuzhou Zhiqiu Medical Equipment Co., Ltd

- Dimensions: 2120*800*610-930mm (L*W*H)
- Load Capacity: 260kg
- Height Adjustment: 610-930mm, hydraulic dual-pump system
- Trendelenburg/Reverse Trendelenburg: 0-12°
- Backrest Angle: 0-75°, gas spring control
- Footrest Adjustment: 0-35°, mechanical crank
- Material: Epoxy-coated steel frame + ABS base
- Mobility: 200mm noiseless PU castors, central brake system
- Safety Feature: Stainless steel collapsible side rails with lock
- Special Feature: X-ray translucent back section with cassette holder

Product Summary

 Dual hydraulic columns for smooth height & angle adjustment
 X-ray compatible backrest with built-in cassette holder
 Foldable side rails and fifth steering wheel for enhanced control
 Durable epoxy-coated steel frame and molded platform

Application

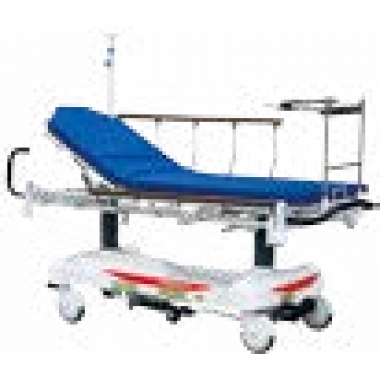

This hydraulic stretcher is widely used in emergency rooms, surgical departments, and intensive care units. It is suitable for patient transport, emergency procedures, and temporary recovery.

Features & Performance

Equipped with a heavy-duty steel frame and ABS plastic molding, this stretcher offers a reliable structure with high load capacity. The dual hydraulic pump allows effortless height and angle adjustment by foot control, while the X-ray-compatible backrest is designed for advanced imaging support.

Technical Specifications

Specification	Details
Dimensions	2120*800*610-930mm
Load Capacity	260kg
Trendelenburg	0-12°
Backrest Adjustment	0-75°
Footrest Adjustment	0-35°
Material	Epoxy coated steel + ABS
Wheels	200mm PU castors, with central lock
Rails	Stainless steel collapsible
CPR	Manual CPR release function
X-ray	Translucent back with cassette holder

After-Sales & Support

We provide a one-year warranty on mechanical components. Technical support, spare parts supply, and operation manuals are available. Customization and OEM services are also supported.
